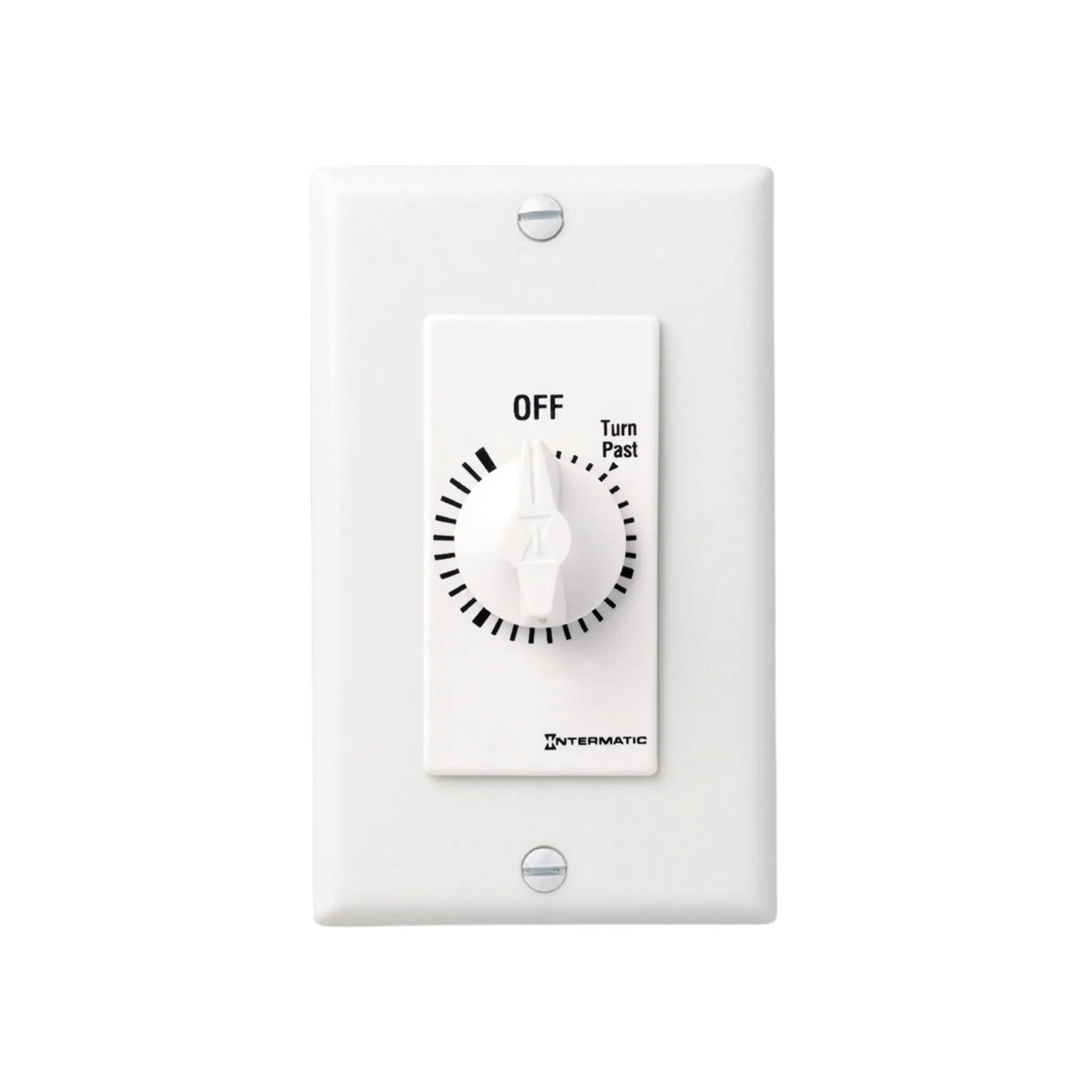

The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Features:

2-Hour timer
SPST (Single-Pole Single-Throw)
Breaks circuit at end of timing cycle
No electricity required to operate
Replaces any standard or decorator single- or multi-gang wall switch
Automatically limits ON time for energy consuming loads
Quick and easy installation
Time-saving up front terminal connection with teeter-type terminals
Incandescent/fluorescent/CFL/LED compatible
No neutral connection is required

Specifications:

Manufacturer: Intermatic
Manufacturer Part Number: FD2HW
Product Type: Spring Wound Countdown Timer
Voltage Rating: 125-277 VAC
Frequency Rating: 50/60 Hz
Motor Load Ratings Range: 1 HP, 125 VAC; 2 HP, 250 VAC
Resistive Heater Load Rating: 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Tungsten Incandescent Load Rating: 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W
Countdown Time: 2 Hours
Operating Temperature Range: 40 to 120 Degrees F
Switch Type: SPST
Wall Plate Configuration: Single-Gang, Multi-Gang
Wiring Configuration: Single
Dimensions: 6" x 2.9" x 2.25"
Weight: 2.0 lb.
