• Wattage: 150W
• Primary Voltage: 120V
• Secondary Voltage: 12V,  13V,  14V,  15V
• Primary Protection:  Thermal shut-off
• Secondary Protection: High performance magnetic circuit breaker. May also be used as on/off rocker switch.
• Terminal Block:  Large terminal block for multiple low voltage cable connections.
• Cable cord: 6-foot, heavy gauge, grounded and water resistant power cord with molded plug
• Core: Fully encapsulated TOROID core
• Timers & Photocell:  None
• Wire Rating:  Internal wires are rated at 125°C (257°F)
• Certification: Class 1 Transformer. ETL listed to U.S. safety standards for landscape lighting transformers (UL1838). Pool and spa ready, suitable for use with submersible fixtures.
• Warranty: Limited lifetime on coil and enclosure. One year on mechanical timer and photocell. Two year warranty on digital timer

Features:

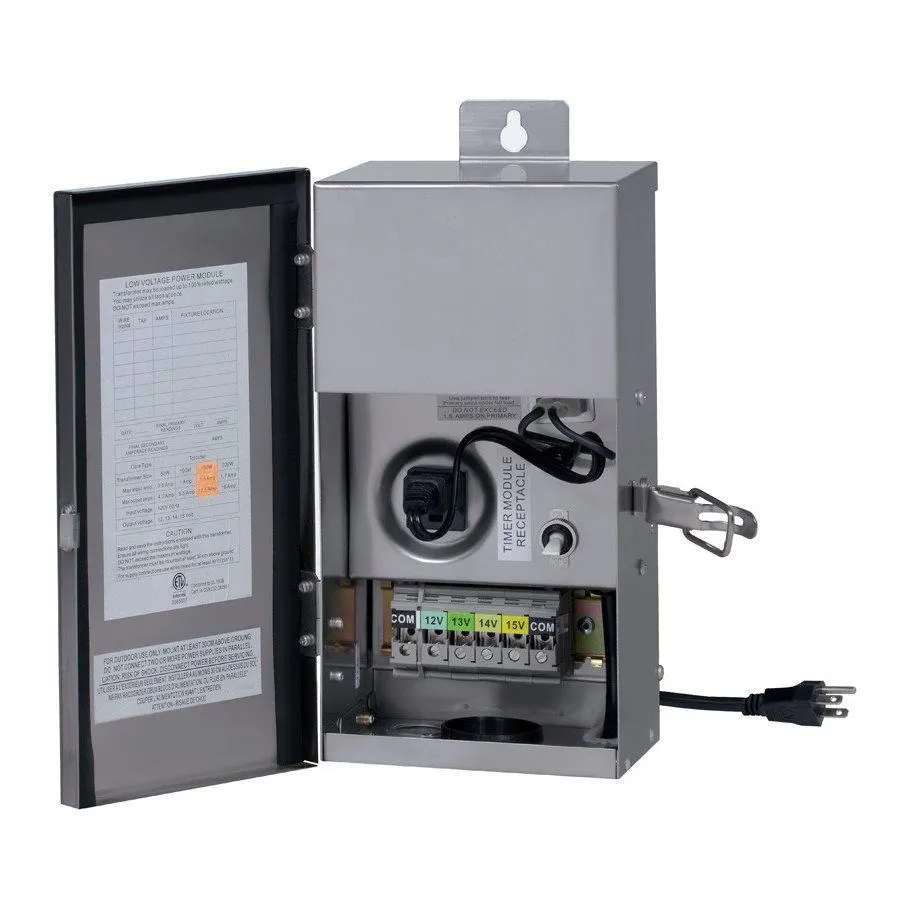

• Easy removable stainless steel hinged cover door, allowing great access during installation.
• Moisture resistant gasket around cover door.
• Over-sized wiring terminal block for easy multiple low voltage cable connections.
• Removable bottom plate with prepunched knockouts 3X½” or 3X¾” conduits and 1X1¾” cable feeder for easy entrance of multiple low voltage cables during installation.
• Mounting slots on top and bottom for quick mounting without templates.
• 6-foot, heavy guage, grounded and water resistant power cord with molded plug. The power cord gets through an open hatch, on the right side of the enclosure interior.
• Optional 24-hour plug-in mechanical timer and digital timer available.
• Optional photocell is available for use with timers or stand alone. Photocell is attached to enclosure, easy knockout.
• ETL listed to U.S. safety standards for landscape lighting transformers (UL1838), Pool and Spa ready, suitable for use with submersible fixtures.
• Dimensions:
• Width: 6.5"
• Height: 13"
• Depth: 6"
• Weight: 11lbs
• Application: LED lighting systems. Landscape lighting systems.
