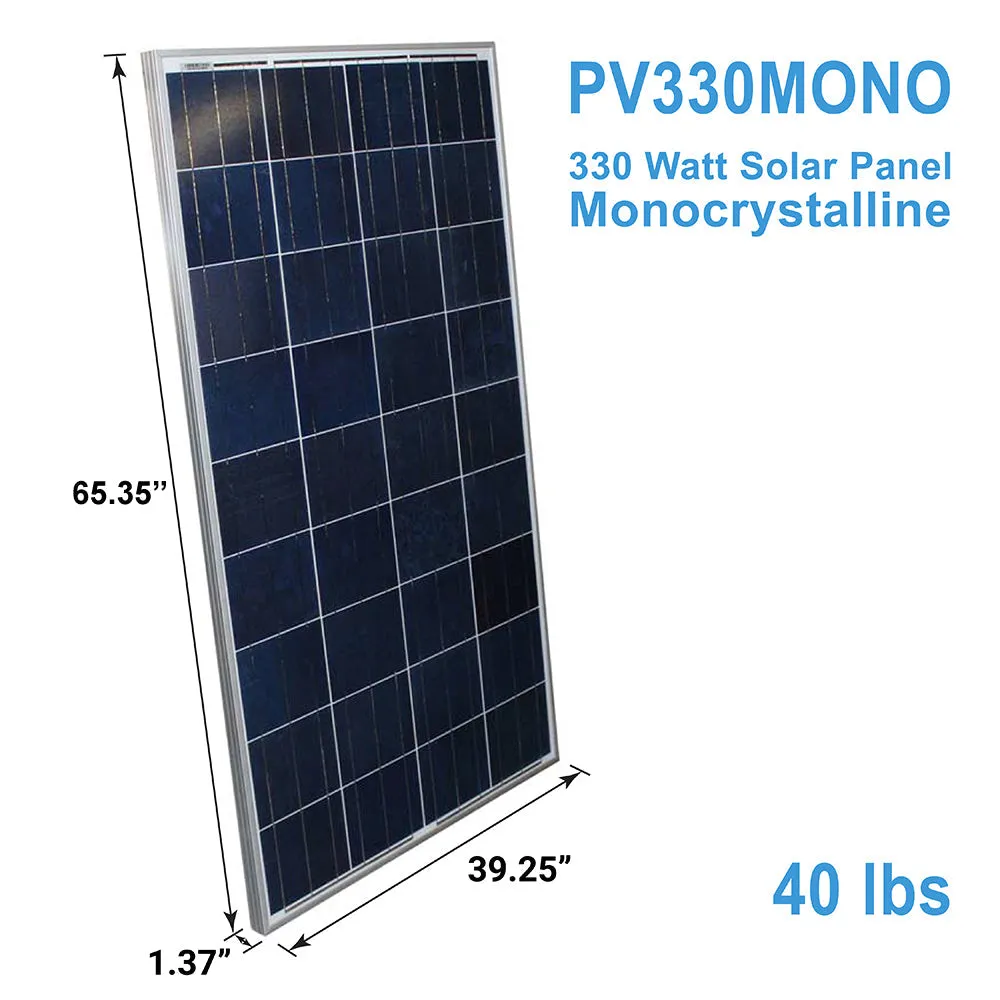

Boost your power solutions with the AIMS Power 330 Watt Monocrystalline Solar Panel, now available at Appliance Guys. This panel, designed for both versatility and durability, features tempered glass and a robust surface, ensuring resilience against harsh weather conditions. Its monocrystalline solar cells provide efficient light transmission, while the textured glass enhances solar energy harvesting. The pre-drilled aluminum frame allows for easy installation in both home and industrial settings. Enjoy the assurance of a 25-year limited warranty and panels capable of delivering 0 to 3 Watts over the rated capacity.

Power & Operation:

• Maximum Power (Watts): 330 watts
• Operating Voltage (Vmp): 33.9 volts
• Operating Current (Imp): 9.73 amps
• Open Circuit Voltage (Voc): 41.5 volts
• Short Circuit Current (Isc): 10.22 amps
• Tolerance Wattage: 0-3 watts
• Bypass Diode Rating: 10A
• Solar Cell: 158.75mm x 158.75mm
• Number of Cells: 60 (10*6)
• Cell Efficiency: 21.47%
• Front Glass Thickness: 3.2 mm
• Surface Maximum Load Capacity: 6000Pa (snow) and 3600Pa (wind)
• Allowable Hail Load: 45mm at 30.7m/s

Temperature & Efficiency:

• Temperature Coefficients of Isc: -0.048%/°C
• Temperature Coefficients of Voc: -0.29%/°C
• Temperature Coefficients of Pm: -0.37%/°C
• Temperature Range: -40°C to 85°C
• Module Efficiency: 19.78%
• Warranty: 91.2% of 12 years, 80.6% of 25 years
